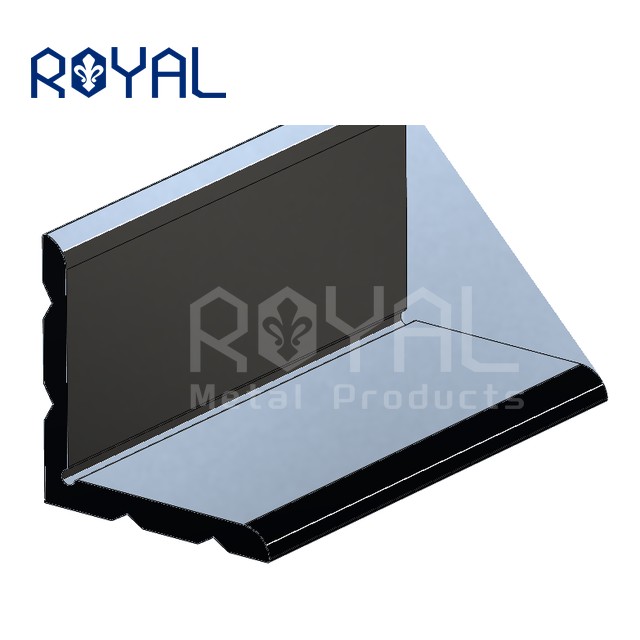

Aluminum angle extrusions: equal and unequal legs from 12.7mm to 101.6mm. 55 standard sizes in 1050, 1070, 3103 and 6060 alloys with thickness from 0.8mm to 8.0mm. Widely used in electronics, furnishing, robotics and construction. Custom extrusion dies available.
Equal and unequal leg angles in 1050, 1070, 3103 and 6060 alloys. All dimensions in millimeters. Theoretical weight in kg/m.
| Part Code | Size A x B (mm) | Thickness S (mm) | Weight (kg/m) |
|---|---|---|---|
| CNJL127X0.8 | 12.7 x 12.7 | 0.8 | 0.054 |
| CNJL1905X0.8 | 19.05 x 19.05 | 0.8 | 0.084 |
| CNJL201214 | 20 x 12 | 1.4 | 0.116 |
| CNJL202015 | 20 x 20 | 1.5 | 0.158 |
| CNJ202002 | 20 x 20 | 2 | 0.206 |
| CNJL252014 | 25 x 20 | 1.4 | 0.165 |
| CNJ252510 | 25 x 25 | 1.2 | 0.159 |
| CNJL252514 | 25 x 25 | 1.4 | 0.184 |
| CNJL254X15 | 25.4 x 15 | 1.5 | 0.202 |
| CNJL254X0.8 | 25.4 x 25.4 | 0.8 | 0.109 |
| CNJL25.4X25.4X1.2 | 25.4 x 25.4 | 1.2 | 0.162 |
| CNJ252515 | 25.4 x 25.4 | 1.5 | 0.201 |
| CNJL25.4X25.4X1.5 | 25.4 x 25.4 | 1.5 | 0.202 |
| CNJL252515G | 25.4 x 25.4 | 1.5 | 0.201 |
| CNJL25.4X25.4X2.0 | 25.4 x 25.4 | 2 | 0.266 |
| CNJL252520 | 25.4 x 25.4 | 2 | 0.201 |
| CNJL2525278 | 25.4 x 25.4 | 2.78 | 0.362 |
| CNJL25.4X25.4X3.0 | 25.4 x 25.4 | 3 | 0.391 |
| CNJL30X15X2.8 | 30 x 15 | 2.8 | 0.323 |
| CNJL3175X127X1 | 31.75 x 12.7 | 1 | 0.118 |
| CNJL31.75X19.05X1.5 | 31.75 x 19.05 | 1.5 | 0.202 |
| CNJL3175X315 | 31.75 x 31.5 | 3.15 | 0.519 |
| CNJL322014 | 32 x 20 | 1.4 | 0.192 |
| CNJL38X38X465 | 38 x 38 | 4.65 | 0.906 |
| CNJL38.1X38.1X3.0 | 38.1 x 38.1 | 3 | 0.619 |
| CNJL402514 | 40 x 25 | 1.4 | 0.222 |
| CNJL404014 | 40 x 40 | 1.4 | 0.298 |
| CNGY0136 | 40 x 40 | 3 | 0.626 |
| CNGR1502 | 49.5 x 40.5 | 8 | 1.513 |
| CNJL502514 | 50 x 25 | 1.4 | 0.279 |
| CNJL505014 | 50 x 50 | 1.4 | 0.373 |
| CNGY0132 | 50 x 50 | 3 | 0.789 |
| CNTC101L05 | 50 x 50 | 3 | 0.789 |
| CNTC101L06 | 50 x 50 | 5 | 1.287 |
| CNJL508X127X1 | 50.8 x 12.7 | 1 | 0.17 |
| CNJL50.8X50.8X2 | 50.8 x 50.8 | 2 | 0.544 |
| CNJL5050278 | 50.8 x 50.8 | 2.78 | 0.755 |
| CNJL50.8X50.8X3.18 | 50.8 x 50.8 | 3.18 | 0.854 |
| CNJL5050445 | 50.8 x 50.8 | 4.45 | 1.176 |
| CNJL508X508X47 | 50.8 x 50.8 | 4.7 | 1.243 |
| CNJL50.8X50.8X6 | 50.8 x 50.8 | 6 | 1.434 |
| CNJL50.8X50.8X6.0A | 50.8 x 50.8 | 6 | 1.566 |
| CNTC101MP29 | 64.8 x 64.8 | 3.2 | 1.412 |
| CNTC101MP30 | 65.18 x 65.18 | 2.5 | 2.169 |
| CR70JM | 69.4 x 65 | 3 | 2.479 |
| CNJL702514 | 70 x 25 | 1.4 | 0.355 |
| CNJL762X127X1 | 76.2 x 12.7 | 1 | 0.239 |
| CNJL76.2X50.8X4.6 | 76.2 x 50.8 | 4.6 | 1.537 |
| CNJL762X508X47 | 76.2 x 50.8 | 4.7 | 1.569 |
| CNJL76.2X50.8X6.1 | 76.2 x 50.8 | 6.1 | 2.013 |
| CNJL76.2X76.2X6.35 | 76.2 x 76.2 | 6.35 | 2.548 |
| CNJL101X76X6 | 101 x 76 | 6 | 2.801 |
| CNJL1016X127X1 | 101.6 x 12.7 | 1 | 0.307 |
| CNJL1016X508X47 | 101.6 x 50.8 | 4.7 | 1.895 |
| CNJL1016X508X635 | 101.6 x 50.8 | 6.35 | 2.532 |
55 standard sizes available, including 10/20/30/40/50/60 series. Custom sizes upon request.
