Why Side-Mounted Aluminum Railings Are the Smart Choice for Waterproofed Balconies
2025-11-24
View:291
In modern construction, protecting the waterproof layer has become a top priority. Once the membrane is damaged, repairs are costly and long-term structural problems may follow. For this reason, more architects, developers, and homeowners are choosing side-mounted aluminum railing systems to avoid drilling through finished surfaces.
Side mounting allows railing posts to be installed on the vertical face of a slab or wall, keeping the waterproof layer fully intact while maintaining safety and aesthetics.

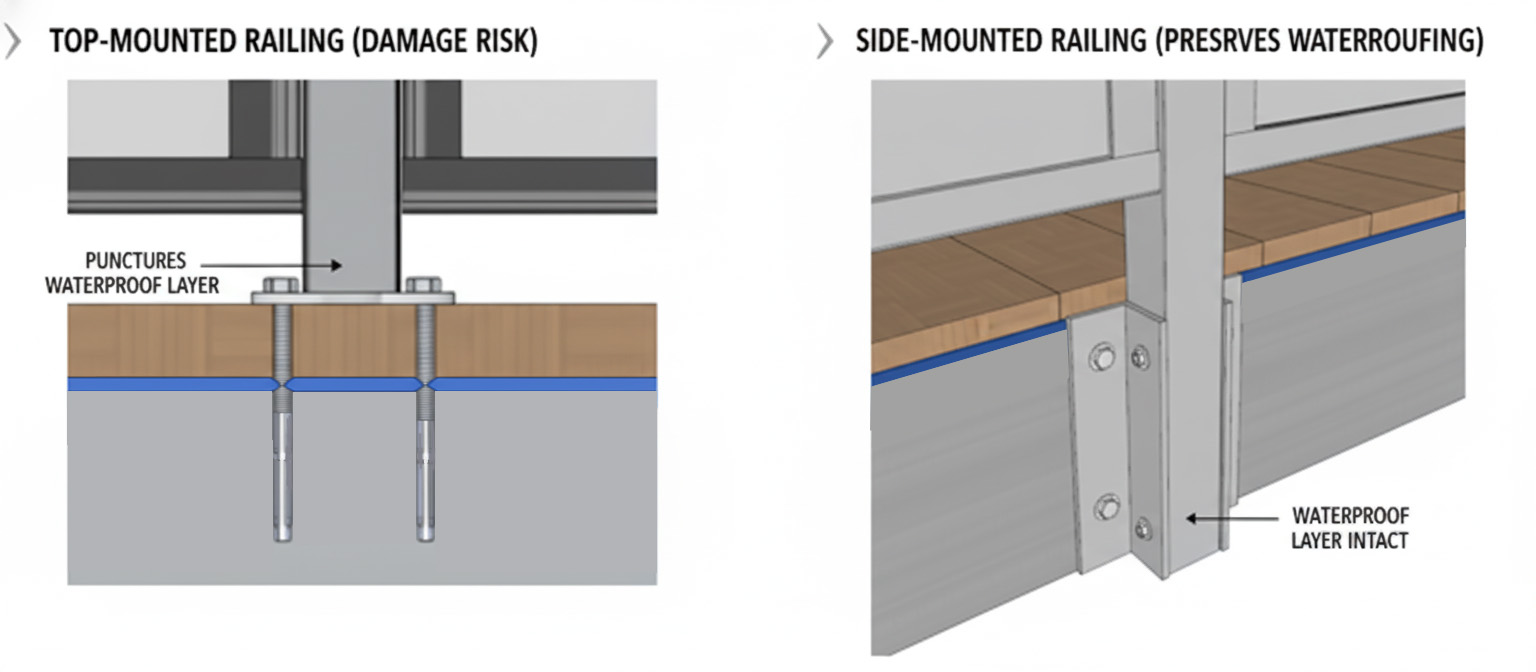

The Hidden Risk of Top-Mounted Installation
A top-mounted railing is fixed directly into the floor surface. Even when sealant is applied around the bolts, the waterproof layer has already been punctured.
Over time, natural building movement, vibration, and temperature changes slowly weaken these sealed points. Water then finds its way into the concrete slab, leading to:
Water infiltration beneath tiles or finishes
Mold growth and interior damage
Corrosion of steel reinforcement
Increased repair and maintenance costs
Reduced building lifespan
Simply put, a damaged waterproof layer is almost impossible to fully restore without major structural work.
For projects that prioritize long-term durability, a different approach is required.
What Makes Side-Mounted Railings Different?
Side-mounted railings are fixed into the vertical face of a slab or wall rather than the top surface. This keeps the waterproof layer completely intact.
Main advantages include:
No drilling through waterproof membranes
Full preservation of drainage and floor slope
Cleaner, more minimal appearance
More usable floor space
Ideal for renovation and waterproofed surfaces
Side mounting has become a preferred solution for:
Balconies and terraces
Rooftop decks
Hotel and resort platforms
High-rise residential buildings
Renovation and retrofit projects
But an important question often follows:
Is side mounting strong enough?
The answer is yes — when it is engineered correctly.

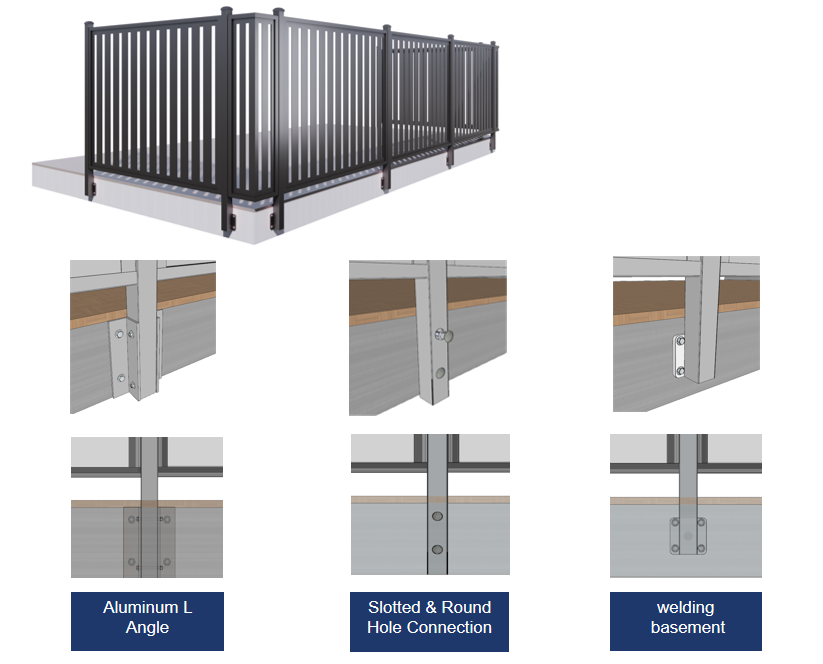

Structural Safety Depends on Smart Design
A properly engineered side-mounted system can easily meet safety requirements when designed correctly. The strength lies in the connection system, not just the post.
Important design details include:
• Reinforced Mounting Brackets
Minimum 5mm thick aluminum or stainless steel plates to prevent deformation.
• Dual-Direction Stability
The base structure prevents post rotation and lateral movement.
• Heavy-Duty Anchors
Stainless steel M8 or higher chemical or expansion anchors are used to ensure strong pull-out resistance.
• Corner Reinforcement
Corners receive additional support to handle higher stress concentrations.
• Adjustable Slots
Allow minor on-site alignment while keeping structural strength.
This combination ensures long-term durability and stability.
Side-mounting is not required for every project. However, when waterproof protection and long-term durability are critical, it is one of the best installation solutions available today.
If you are unsure whether your project is suitable for side mounting, our technical team is always available to assist with professional guidance.
