✅ 6063-T5 Aluminium — anti-rust & outdoor-rated
✅ Slim & clean appearance for Fence,Railing,Screen,Gate &Other Systems
✅ Wood-grain / powder coating options
✅ Lightweight
✅ Custom length & pre-drilling available

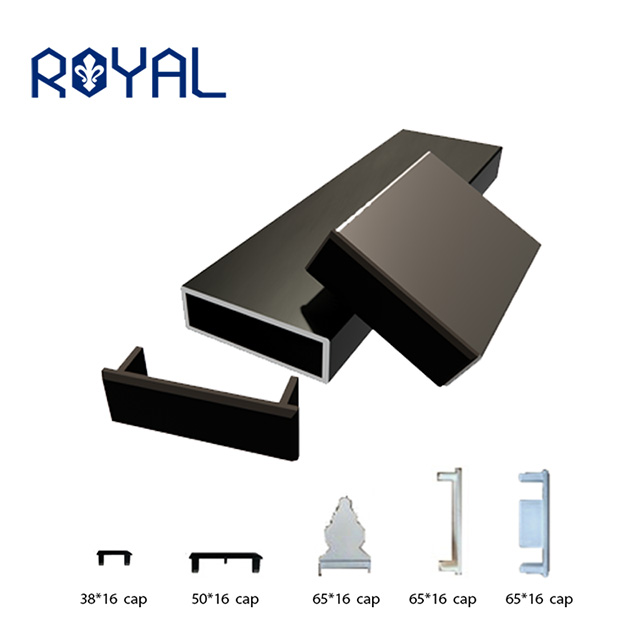

The 16 Series Slat Profile is a versatile aluminum extrusion designed for customers who need raw profiles, semi-finished materials, or custom fabrication solutions.
This series is widely used in DIY projects, contractor fabrication, and as a component for our finished products such as fences, gates, screens, planters, and railing systems.
We supply the profiles individually, or we can assist with cutting, drilling, and custom processing based on your project needs.

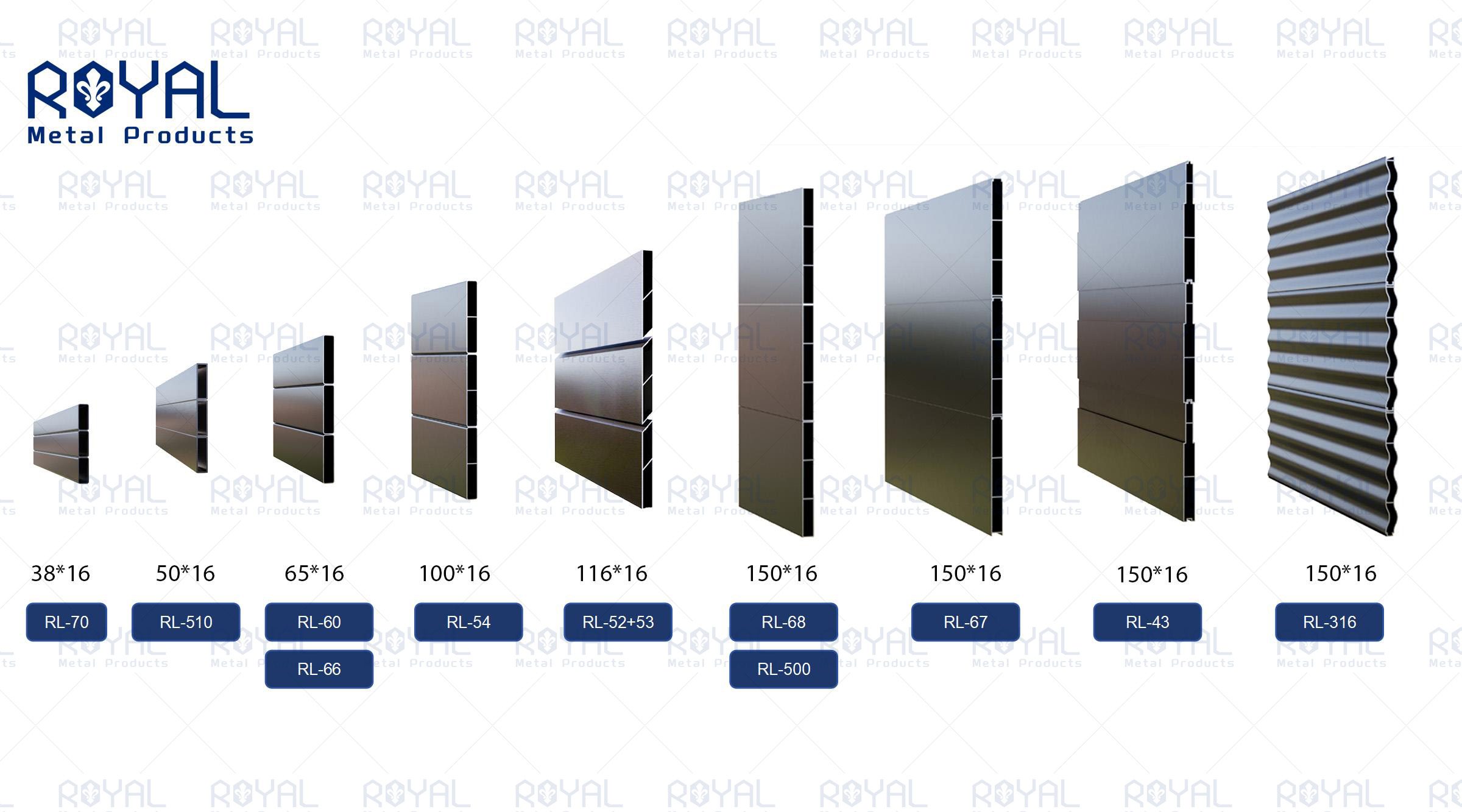

| 16 SERIES SLAT | ||||
| Code | Width (mm) | Depth (mm) | Thickness(mm) | Weight (kg/m) |
| CNFG381612/RL-70 | 38 | 16 | 1.20 | 0.322 |
| RL-510 | 50 | 16 | 2.00 | 0.673 |
| CNGY0135/RL-60 | 65 | 16 | 1.20 | 0.498 |
| CNGY0123 | 65 | 16 | 1.40 | 0.578 |
| RL-66 | 65 | 16 | 1.70 | 0.698 |
| RL-54 | 100 | 16 | 1.20 | 0.77 |
| RL-52 | 116 | 16 | 1.20 | 0.838 |
| RL-53 | 116 | 16 | 1.20 | 0.87 |
| RL-500 | 150 | 16 | 1.20 | 1.15 |
| RL-68 | 150 | 16 | 1.30 | 1.246 |
| RL-67 | 153.5 | 16 | 1.30 | 1.27 |
| RL-43 | 154 | 16 | 1.30 | 1.265 |
| RL-316 | 150 | 16 | 1.45 | 1.36 |
Our 16mm depth slat system includes a wide range of widths—from 38mm to 154mm—providing flexibility for different privacy levels, design preferences, and structural requirements.
The profiles are made from high-quality aluminum alloy, offering excellent strength, lightweight performance, and corrosion resistance for outdoor environments across Thailand and Southeast Asia.
16mm universal depth for system compatibility
Multiple width options: 38 / 50 / 65 / 100 / 116 / 150 / 153 / 154 mm
Suitable for DIY & semi-finished orders
Lightweight
Rust-free aluminum, ideal for tropical weather
Modern and clean appearance

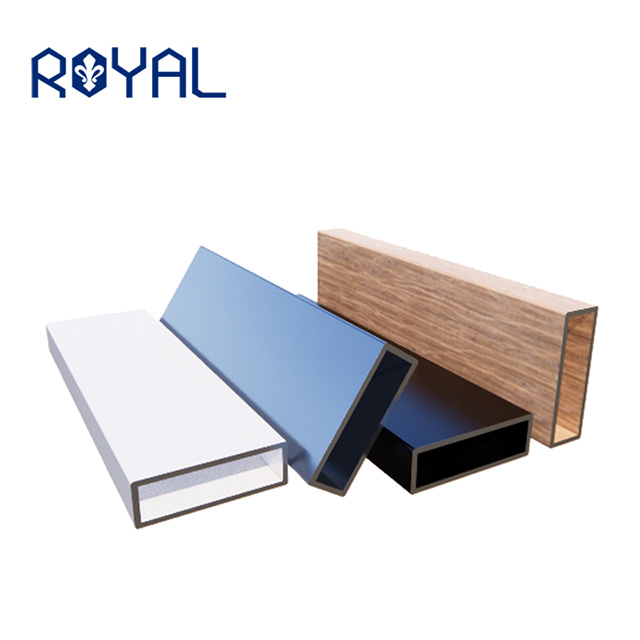

Optional woodgrain and powder-coating finishes
Supported by our accessories & connector systems
Weather & corrosion resistant
Low maintenance — no rust, no repaint
Compatible with most aluminum post systems
Clean & modern aesthetics
Easy to cut & install
Cost-effective solution for privacy fencing
Cut-to-length
Pre-drilling
Slotting
End-cap matching
Labeling & packaging per order sequence
Works with U SLAT CHANNEL or other channel
Horizontal slat installation recommended
Hidden fastener design optional

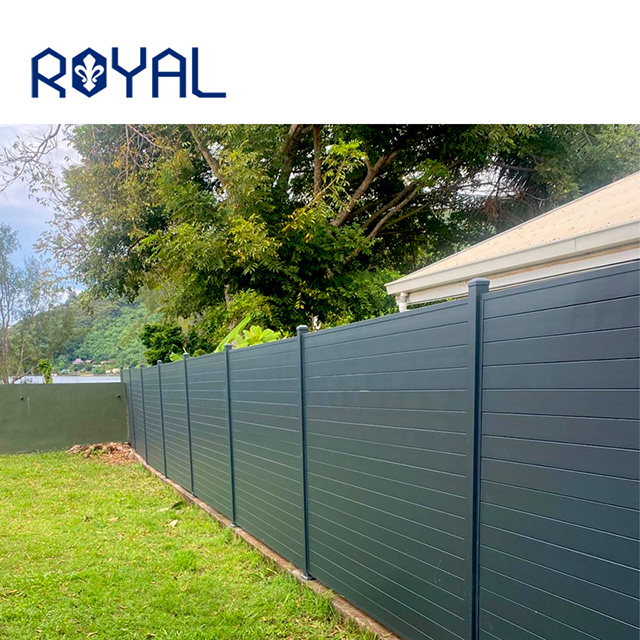

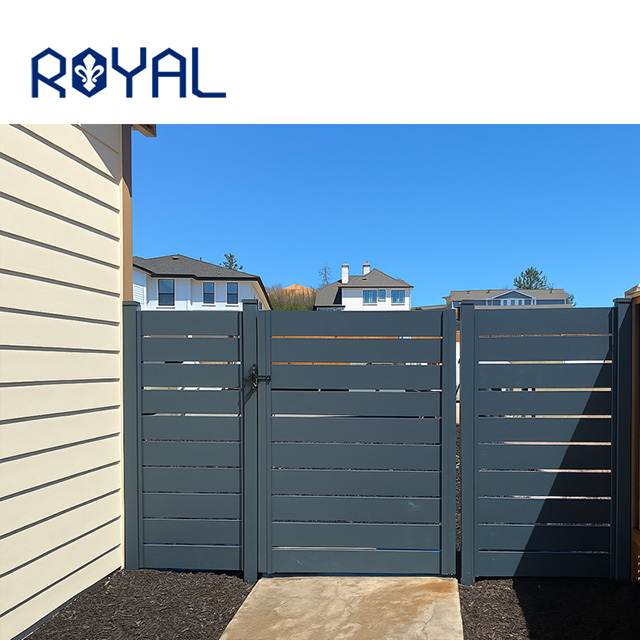

Residential slat fence&gate

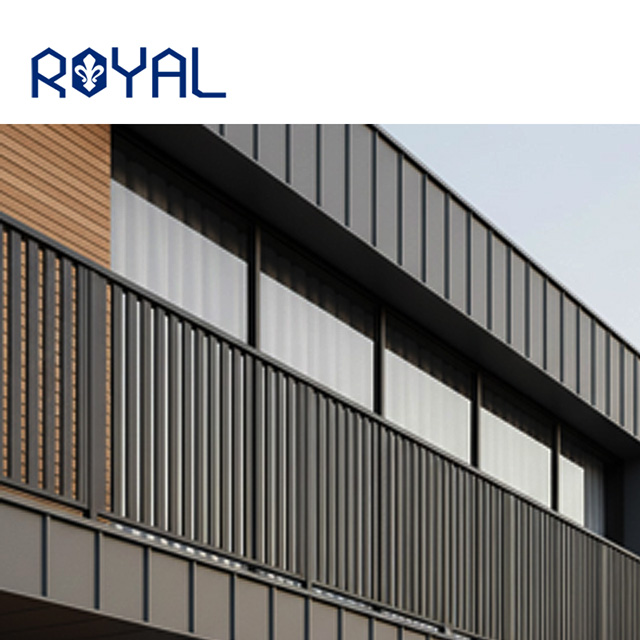

Garden slat railing
Courtyard privacy slat screen
Enclosure
Hotel or villa perimeter
Commercial projects

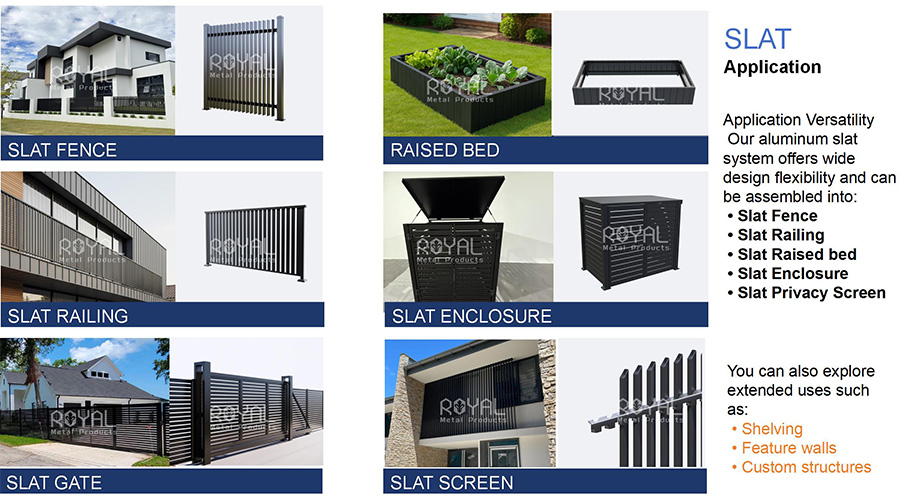

Slats can be freely combined with other aluminum profiles to create a wide range of structures, including fences, railings, planters, enclosures, and privacy screens.
The modular design allows you to customize size, spacing, finishes, and installation methods to match your space and style.
Slats can also be adapted for shelving, feature walls, or custom decorative structures.
Share your idea — our engineering team will help you design, optimize, and manufacture it for fast, hassle-free installation.
Outdoor-grade powder coating
Woodgrain transfer
Anodized finish (optional)
Custom colors available upon request.
We offer a full range of matching profiles and accessories for this slat,
allowing you to easily build your own fence, gate, or screen.
Feel free to follow our recommended combinations or re-create your own style —
quick, flexible, and budget-friendly.
Don’t want to cut or drill by yourself?
Just send us your drawing or measurements, and we handle the rest:

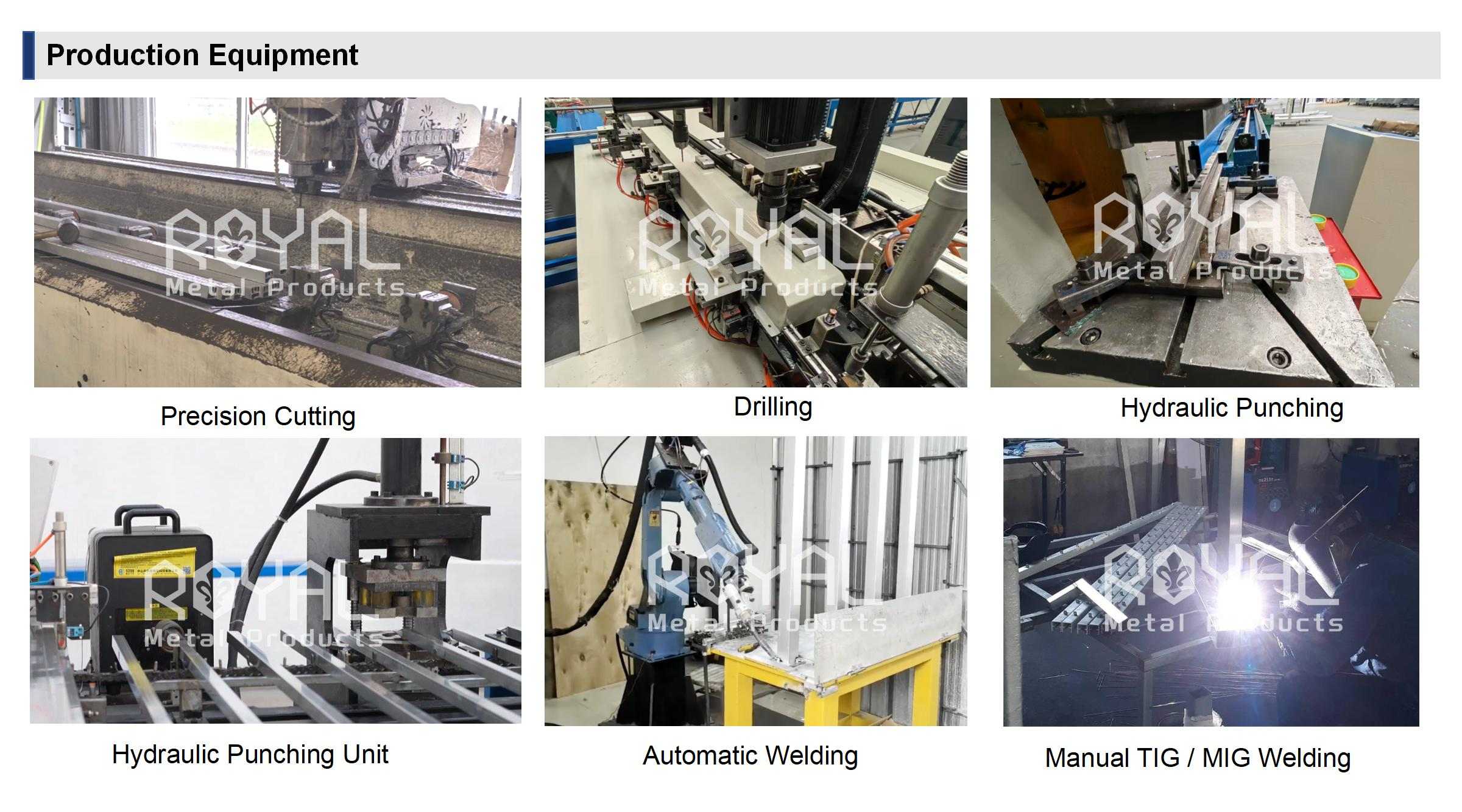

✅Precision Cutting – Clean and accurate cuts for all aluminum profiles.
✅Drilling – Hole drilling based on your installation requirements.
✅Punching – High-efficiency punching for slat, fence, gate, and panel profiles.
✅Pressed Spear Top Forming – Decorative spear-top forming for fencing applications.
You’ll receive products that are ready to install —
saving time, reducing labor, and minimizing mistakes.
Perfect for construction projects, DIY users, and private-label brands.
Simply tell us what you need — we make it real.
From matching materials to semi-finished processing,
we help you complete your project faster and easier.
